Description

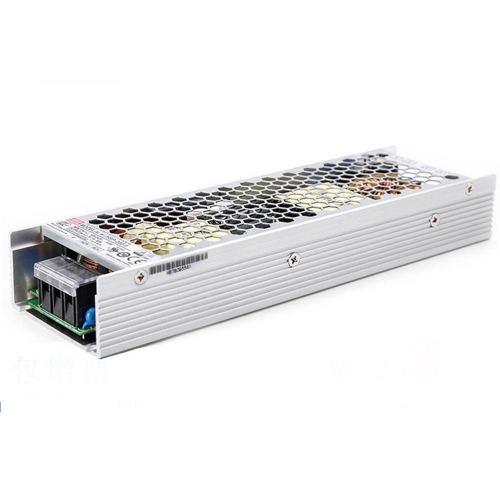

Meanwell HSP-200-5 5V 40A 200W Power
5V 40A 200W
Universal AC input / Full range
Built-in active PFC function
Low leakage current<1.0mA
Protections: Short circuit / Overload / Over voltage / Over temperature
Low profile:31mm
Conformal coated
LED indicator for power on
Size:210*62*31 mm 0.52KG
AC input voltage range———90-264VAC/ 127-370VDC
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start Œ40A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation full load————————≤0.5%
Output over load protection——-110%-150% hiccup mode auto-recovery
Rise，hold up time——————–50mS 20mS at full load typical
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40C @100%-+60 @60% load
certificate： CCC UL TUV CB EMC CE
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 21 × 6.2 × 3.1 cm |
