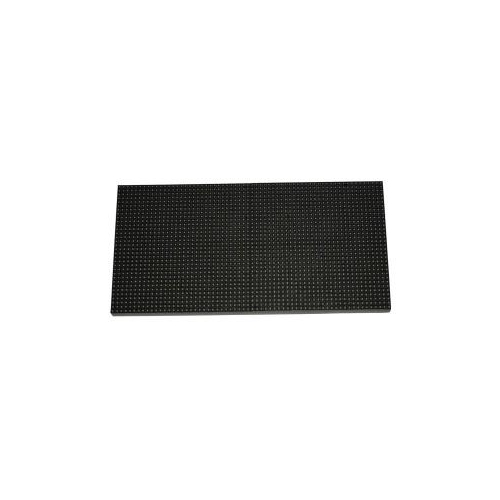

P4  surface mount three-in-one technical parameters
Module Unit Module	Item  Item	Parameter  Parameter
	Model      Model Number	UN-P4-16S
	Module size      Module size	128mm*128mm
	Physical spacing    Pixel pitch	4mm
	Physical Density      Pixels Density	62500 points / m2
	Emission color to    Pixel configuration	1R1G1B
	LED package      mode	SMD2121
	Modules respectively of     Pixel resolution	32dots(W)*32 dots(H)
	Module Maximum power consumption  Max Power consumpion	30W
	Module weight       Weight	0.22kg
	Drive mode       Drive type	Constant Current Driver Constant drive
	Scan mode       Scan mode	1/16 Scanning  1 / 16scan
	Interface       Port type	HUB75-A
	White balance brightness     Brightness of white balance	≥ 1500cd/m2
	Packaging carton size   Package of Carton	467*287*270mm
	Packaging       Quantity	140 pcs
	Carton weight       G.weight
LED screen case Unit Module	Case Size       Dimension	512mm*512mm
	Monomer several modules     Quanty of Module	16
	Power supply       Power supply	5V/40A*2 pcs
	Cooling       Thermal discharge	fan 2pcs
	Cabinet Resolution     Pixel per cabinet	128*128
	Best viewing distance       Best viewing distance	4M ～20M
	The best viewing angle       Best viewing distance	160 ° (W) 120 ° (H)
	Ambient temperature       Temperature	Storage Storage: -35 deg.] C ~ +85 deg.] C Working Working: -20 deg.] C ~ +50 deg.] C
	Relative humidity       Opration humidity	10%-95%
	Screen thickness       Thickness	85mm
Power Power	Operating voltage       Working voltage	AC220V ± 10%
	Average power consumption       Average Power consumption	915W/S
