Interactive LED floor tile screen
Time:2023-06-19
Views:40
.jpg)
.jpg)
Cxcolor LED interactive floor tile screen has the following characteristics:
1. Good load bearing performance

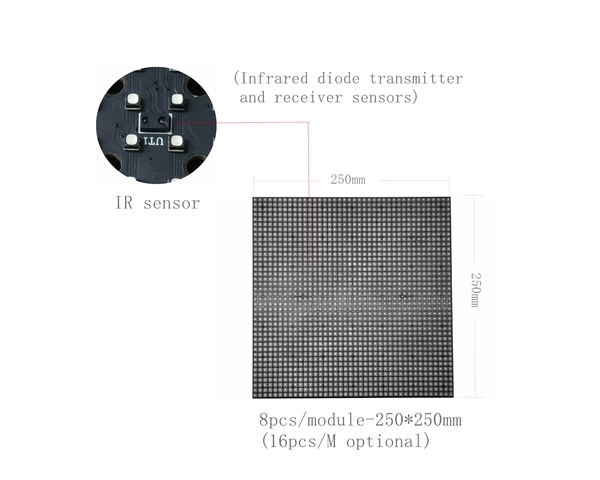

2. High sensitivity
3. Flexible and convenient installation and removal
4. Safe circuit design
Technical parameters of interactive LED floor tile screen：
| Model |
p2.6 | p2.97 | p3.91 | p4.81 | p6.25 |
| Pixel pitch(mm) | 2.6mm |
2.97mm | 3.91mm | 4.81mm | 6.25mm |
| LED Type | SMD1515 | SMD2020 | SMD2020 | SMD1921 | SMD3535 |
| Application Environment | indoor | indoor | indoor | outdoor | outdoor |
| Pixel density(pixel/㎡) | 147928 | 113367 | 65410 | 43222 | 25600 |
| LED panel size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| LED panel density | 96*96 | 84*84 | 64*64 | 52*52 | 40*40 |
| Scan | 1/24 | 1/21 | 1/16 | 1/13 | 1/10 |
| Refresh rate(HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Cabinet size | 500mm*1000mm | 500mm*1000mm | 500mm*1000mm | 500mm*1000mm | 500mm*1000mm |
| Brightness | 800cd-1000cd | 800cd-1000cd | 800cd-1000cd | 3500cd-4500cd | 3500cd-4500cd |
| Average power（w/㎡） | ≤240 | ≤220 | ≤230 | ≤260 | ≤260 |
| Maximum power（w/㎡） | ≤660 | ≤650 | ≤640 | ≤750 | ≤750 |
| Maintenance method | Front | Front | Front | Front | Front |
| Input voltage | AC100V-240V | AC100V-240V | AC100V-240V | AC100V-240V | AC100V-240V |
| Service life | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
